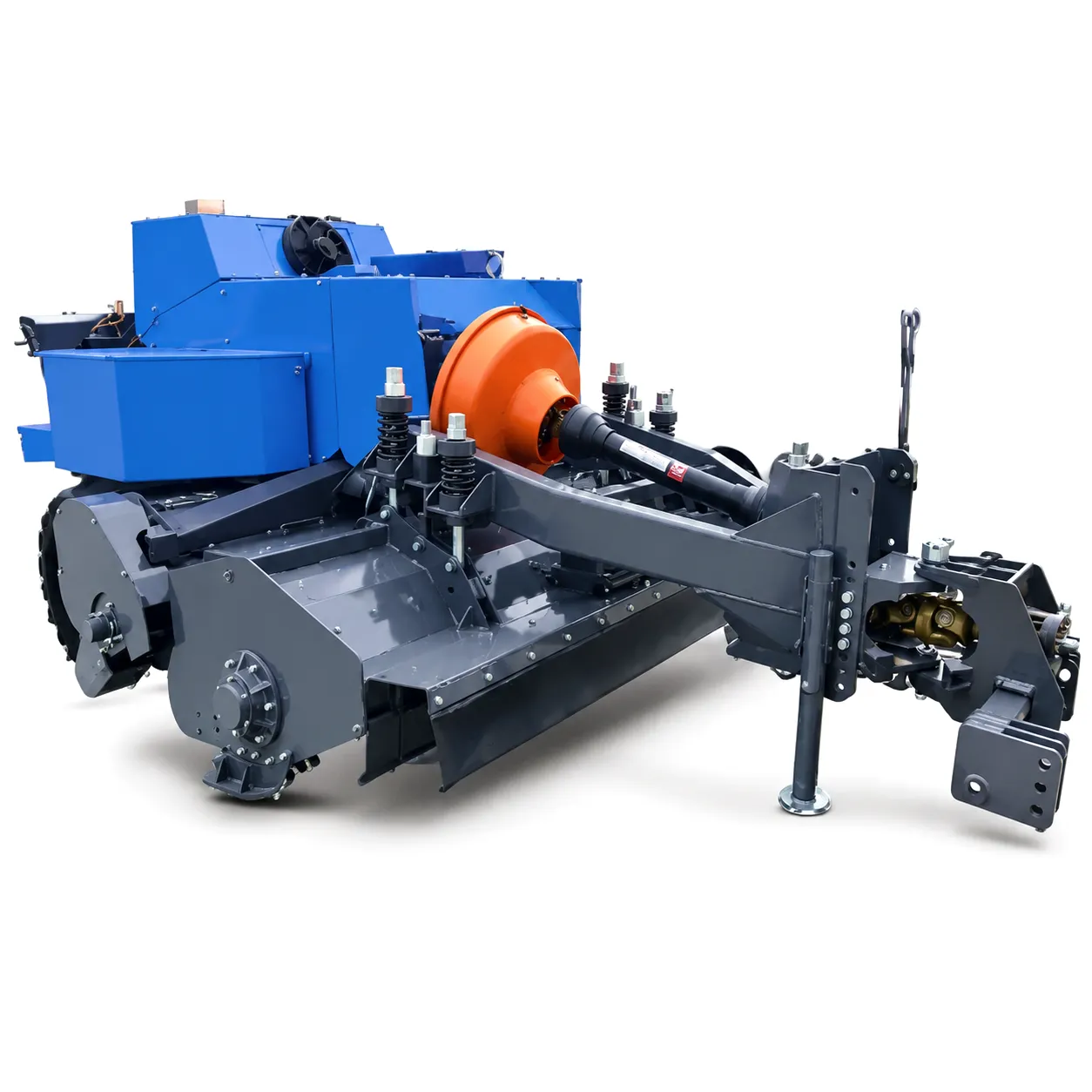

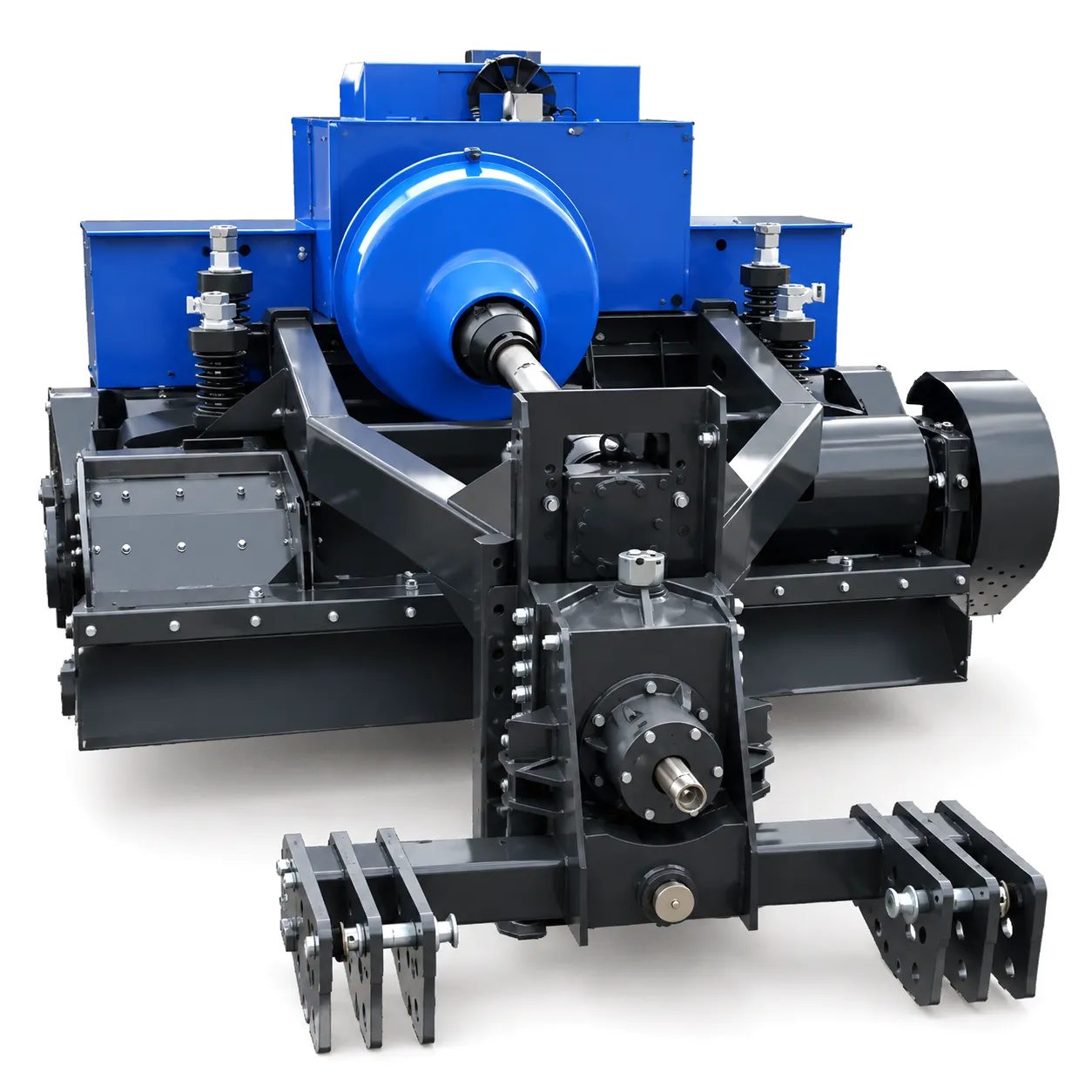

9YF-2200S Square Baler with Single Shredding Mechanism
A heavy-duty towed-type square baler purpose-built for wheat straw, rice straw, cotton stalks, maize stover, alfalfa, and mixed pasture grasses — engineered to cut harvest time, reduce field labour, and produce dense, well-formed bales ready for storage, transport, or livestock feed.
📧 Request a Quote — [email protected]
Our UK sales team responds within one working day.
What Makes the 9YF-2200S a Trusted Square Baler for UK Farms?
British arable and mixed livestock farms face a narrow harvest window every summer. Losing a single dry day to slow, unreliable equipment translates directly into compromised feed quality and higher losses. The 9YF-2200S square baler was designed around this reality. Its 2,200 mm picking width sweeps a generous swath in a single pass, while the integrated single shredding mechanism — a primary-stage crushing and silk-separating assembly — breaks down hard-cored materials such as maize and sorghum stover that standard pick-up balers often struggle to compress uniformly. The result is a denser, more consistent bale that stacks cleanly, stores without void-collapsing, and feeds out more evenly in a total mixed ration system.
Unlike fixed-chamber round balers, the 9YF-2200S delivers a rectangular output with a compression chamber section of 460 mm × 360 mm — a dimension deliberately chosen to match standard UK flat-bed trailer slat widths and reduce the dead space that erodes load efficiency on long-haul movements between farm and merchant. The machine’s towed configuration means it couples directly to tractors already in the fleet, requiring no costly self-propelled investment. With a matched power range starting at 73.5 kW, it is compatible with the mid-range tractors most common across East Anglia, Yorkshire, and the Scottish Borders.
Core Engineering Advantages
Single Shredding Mechanism
Primary-stage crushing delivers uniform fibre separation, improving bale density by up to 18% versus conventional pick-up assemblies and reducing re-baling rejection in high-moisture conditions.
Wide 2,200 mm Pick-Up Width
Hammer-claw picker structure sweeps a full 2,200 mm in one pass, cutting total field time significantly and allowing operators to work through morning dew windows that would stall narrower machines.
D-Type Dual Knotters
Two D-type knotters ensure automatic rope baling with consistent tie tension across every bale. Knotter misfire rates on the 9YF-2200S are engineered to fall below industry average, reducing stoppages mid-field.
Multi-Crop Versatility
Handles wheat straw, rice straw, cotton stalks, maize stover, alfalfa, fresh grass and dry hay — all in a single machine. Moisture compatibility: legume/grass pasture 17–23%, cereal straws 10–23%, soil moisture up to 25%, terrain slopes up to 8°.
Fork Feeding Mechanism
The fork feeding inlet guides crop material into the compression chamber with reduced blockage risk even under high-throughput conditions, keeping downtime low during peak harvest pressure in July and August.
Compact Transport Footprint
Overall dimensions of 6,240 × 2,760 × 1,700 mm keep the machine within UK road transport limits without requiring special escort, simplifying movement between fields and between farms for contract operators.
How the 9YF-2200S Works: Principle, Materials & Operating Scenarios
The machine operates as a fully towed implement hitched behind a compatible tractor. As the tractor moves forward, the hammer-claw picker assembly rotates at high speed, lifting crop material from the swath and feeding it towards the inlet. At this stage, the single shredding mechanism — a primary-stage set of hardened steel crushing rollers with silk-separating tines — pre-processes the incoming material. This is particularly important when baling maize stover or sorghum: the woody core of each stalk is fractured before it enters the compression chamber, so the resulting fibres interlock more tightly under ram pressure, producing a bale that holds shape through rough handling and long storage.
The fork feeding mechanism then channels material into the 460 × 360 mm compression chamber, where a reciprocating plunger compresses each charge. Once the preset length is reached, the two D-type knotters fire simultaneously, tying the bale with rope in a single automated cycle before the bale is ejected from the rear. No operator input is required at the knotting stage — the entire sequence from picking to ejection is continuous, allowing the tractor operator to focus solely on field navigation and speed management.
The machine’s body shell is fabricated from high-tensile structural steel, with wear-contact surfaces — particularly the picker tines, the feeding throat, and the compression chamber walls — reinforced with hardened steel or chrome-boron alloy inserts to extend service life across multiple seasons. Grease points follow a centralised lubrication layout, making routine maintenance accessible to farm mechanics without specialist training.
In terms of practical scenarios across the UK, the 9YF-2200S proves particularly productive on: cereal arable farms in East Anglia and Lincolnshire harvesting wheat straw as a co-product; beef and dairy enterprises in Yorkshire and the Midlands baling hay and silage aftermath; energy crop contractors collecting miscanthus and short-rotation coppice residues; and equestrian supply businesses demanding clean, dust-reduced straw bales with consistent dimensions for bedding use.
Technical Specifications — 9YF-2200S Square Baler
| Serial No. | Item | Unit | Specification |
|---|---|---|---|
| 1 | Model Name | / | Model 9YF-2200S Square Baler |
| 2 | Hitching Method | / | Towed-type |
| 3 | Picking Width | mm | 2200 |
| 4 | Feeding Inlet Width | mm | / |
| 5 | Picker Structure | / | Hammer-Claw Type |
| 6 | Feeder Structure | / | Fork Feeding Mechanism |
| 7 | Knotter Type | / | D-Type |
| 8 | Number of Knotters | pc | 2 |
| 9 | Compression Chamber Section Size (W x H) | mm | 460 x 360 |
| 10 | Baling Method | / | Automatic Rope Baling |
| 11 | Matching Power Range | kW | ≥73.5 |
| 12 | Overall Dimension (L x W x H) | mm | 6240 x 2760 x 1700 |
| 13 | Machine Weight | kg | 2350 |
Customer Success: Herefordshire Arable Contractor, UK
🏭 Case Study: Grendon Agricultural Services, Ledbury, Herefordshire
Challenge: A 650-hectare arable and livestock operation running two older round balers was losing up to 35 working hours each harvest season to blockages, knotter failures, and bale rejection at the merchant — specifically from maize stover bales that were not dense enough to pass quality checks for biomass fuel use.
Solution: After trialling a 9YF-2200S square baler during the 2024 harvest alongside their existing fleet, Grendon Agricultural Services found the single shredding mechanism resolved the density problem outright. Maize stover bale rejection at their biomass merchant dropped from 22% of loads to below 3% within the same season. The wider 2,200 mm picking width reduced total field passes by approximately 14%, freeing one tractor and driver from the baling circuit on peak days.
Outcome: The operation placed an order for a second unit ahead of the 2025 season and quoted a cost saving of approximately £18,000 over 18 months in reduced fuel, contractor hours, and merchant rejection penalties.
What Our Customers Say
⭐⭐⭐⭐⭐
“The shredding unit on this baler is a genuine game-changer for maize stover. We’ve not had a single knotter failure since commissioning and the bale weights are consistent to within 5 kg per unit — our haulier has stopped complaining.”
— David Mercer, Arable Contractor · Lincolnshire, UK
⭐⭐⭐⭐⭐
“We supply straw bedding to equestrian yards across Yorkshire and bale quality has always been our bottleneck. This machine gives us the rectangular shape and density that our customers actually want. Delivery lead time from this supplier was far better than we expected.”
— Sarah Holdsworth, Agricultural Merchant · North Yorkshire, UK
⭐⭐⭐⭐⭐
“We’ve been running the 9YF-2200S for two seasons now across our dairy support land in East Anglia. The fork feeding mechanism has never once blocked on second-cut grass silage aftermath and the after-sales technical support from the team has been solid.”
— Tom Ashworth, Dairy Farm Manager · Suffolk, UK
Looking for an All-in-One Baling Solution?
For operations that need to bale and wrap in a single field pass, our range extends beyond the 9YF-2200S. The 9YCM-850 Baling and Wrapping Integrated Machine combines pick-up, compression, knotting, and full silage film wrapping into one tractor-towed implement — ideal for high-moisture grass silage operations where immediate sealing after baling is critical to fermentation quality. This integrated approach significantly reduces the number of field operations and is particularly well suited to intensive dairy and beef silage programmes across Wales, Scotland, and Northern Ireland where dry weather windows are shorter and wrapping delays carry greater risk.
Manufacturing Capability & Product Customisation
Our manufacturing facility operates across dedicated CNC fabrication, robotic welding, and controlled-environment assembly lines, enabling high-volume output without sacrificing dimensional tolerances. Every square baler undergoes a pre-dispatch functional test covering knotter cycle count, compression chamber pressure verification, and picker speed under load before leaving the factory floor.
Beyond the standard 9YF-2200S configuration, we offer a structured customisation programme for B2B buyers and distributors. Common bespoke requests from UK importers and machinery dealers include: modified compression chamber dimensions to produce bales in non-standard sizes for niche bedding or export markets; reinforced chassis packages for operation on slopes exceeding the standard 8° terrain rating; alternative knotting twine material specifications for compatibility with specific merchant requirements; PTO shaft configuration changes to match regional tractor connector standards; and OEM branding for distributors who market under their own product label. Minimum order quantities for customised configurations are discussed directly with our engineering and sales team.
