9YQ-2300Round Baler

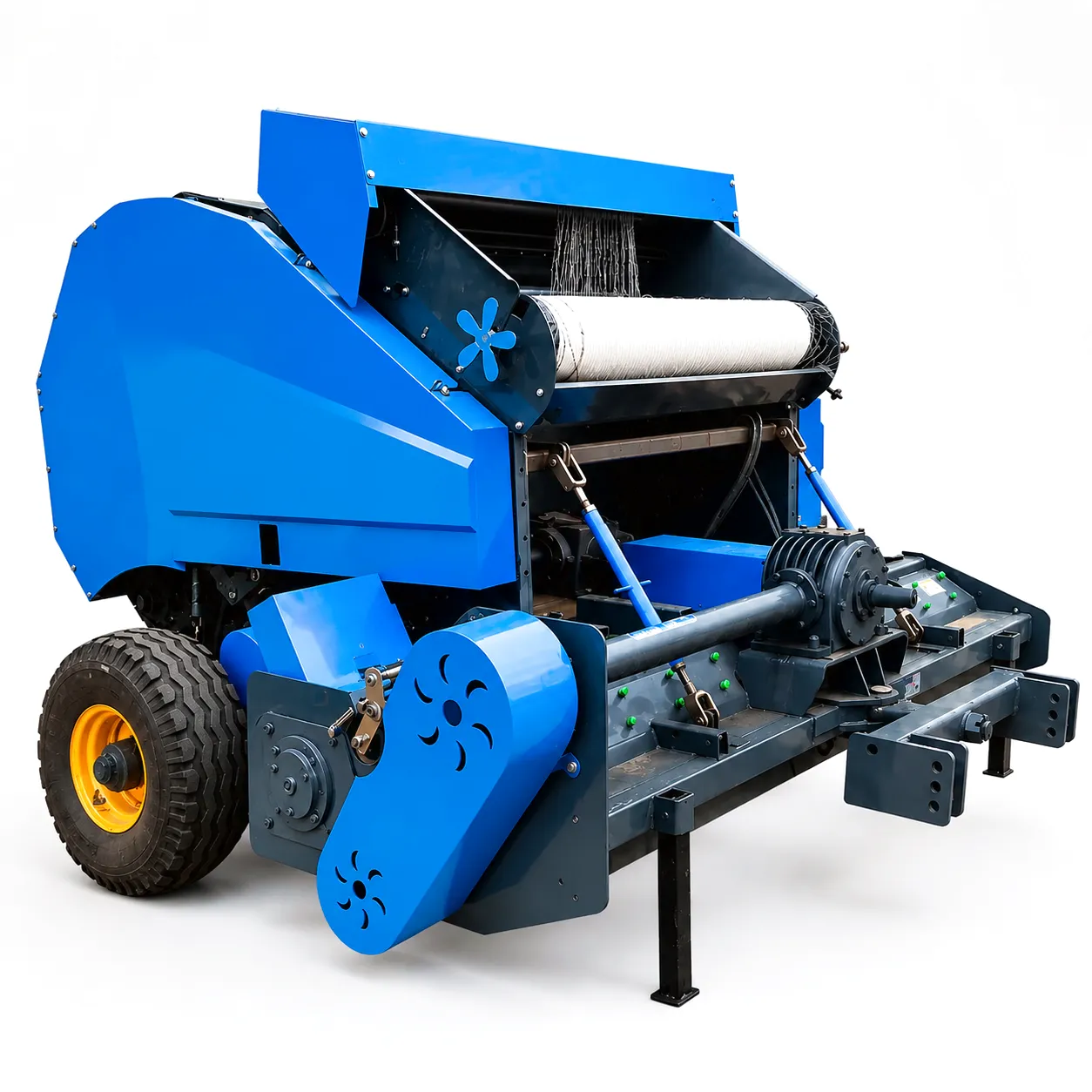

9YQ-2300 Round Baler

Heavy-duty round baler engineered for British arable and livestock farms — 2300mm picking width, automatic net wrapping, and power range up to 132.5 kW.

Across the arable heartlands of East Anglia, the mixed farms of Yorkshire, and the livestock operations of the Scottish Borders, one challenge stays constant: getting your crop off the field quickly, cleanly, and in a form that stores and transports without waste. The 9YQ-2300 Round Baler was developed specifically to meet those demands. With a generous 2300 mm picking width, it covers ground fast — reducing passes, cutting fuel costs, and letting operators make the most of the narrow weather windows that UK harvests so often deliver. The roll-drum bale chamber, fitted with 18 pressing rollers each measuring Φ190 mm in diameter, applies consistent, even pressure across the full 1250 mm chamber width. The result is a dense, weather-resistant round bale that holds its shape in the clamp, the shed, or left briefly on the headland.

What sets this round baler apart from competing models at similar price points is the dual-mechanism feeding system. A spring-tooth picker lifts lodged or tangled material cleanly from windrows, while the shift fork feeding mechanism and screw continuous feeding mechanism work in tandem to deliver crop into the bale chamber at a controlled, steady rate. That combination virtually eliminates the jamming and uneven core formation that plague simpler designs during heavy-yield seasons. Automatic net wrapping completes the cycle without manual intervention, keeping cycle times short and operator fatigue low during long harvest shifts.

Core Advantages at a Glance

The 9YQ-2300 Round Baler operates on the roll-drum compression principle, which is widely regarded as the most reliable architecture for field-scale baling. As the machine is pulled across a swath, the spring-tooth picker — operating on a hammer-tooth configuration — lifts material cleanly from the ground at 2300 mm width. The crop passes through the feeder, where the shift fork mechanism handles initial intake and the screw continuous feeder maintains a controlled, constant flow into the compression chamber. Inside the roll-drum bale chamber (width 1250 mm, compression diameter Φ1000 mm), 18 rollers rotate synchronously to wrap and compress the incoming material into a tight cylindrical bale. When the bale reaches the target diameter, the automatic net wrapping cycle activates: net is cut and secured without the operator leaving the tractor cab.

The structural components — frame, roller shafts, and pick-up tines — are manufactured from high-tensile alloy steel, heat-treated for wear resistance and fatigue strength. Roller surfaces carry hardened coatings to resist the abrasive crop material encountered during cereal straw and silage grass baling. The drivetrain, rated for PTO input from 58.8 kW to 132.5 kW, uses precision-machined gearbox assemblies with sealed bearing units for low-maintenance operation even in dusty UK harvest conditions.

In terms of field application, this round baler performs across a broad range of British agricultural scenarios: wheat and barley straw baling after combineharvest; grass silage baling for dairy and beef herds; hay production on permanent and temporary leys; and biomass crop handling for energy sector customers. Its 2500 kg working weight and overall dimensions of 2950×2750×2050 mm keep it manoeuvrable on the narrow lanes and gateways common across British farms.

Our baler product range — engineered for demanding agricultural environments worldwide

For operations requiring baling and stretch film wrapping in a single field pass, our integrated range eliminates the need for a separate wrapper. The 9YCM-850 Baling and Wrapping Integrated Machine combines compression baling and film wrapping into one continuous cycle — ideal for high-moisture silage crops where speed of sealing is critical to fermentation quality. UK contractors handling silage for dairy herds in Wales, the West Country, and Northern Ireland have found the integrated approach cuts overall field time by a further 20–30% compared to running a baler and wrapper as separate machines. If your operation involves significant volumes of wrapped silage, it is worth comparing specifications before placing your order.

Our manufacturing facility spans over 28,000 square metres of covered production space, equipped with CNC machining centres, robotic welding lines, and heat treatment furnaces. Every 9YQ-2300 Round Baler is assembled and test-run at the factory before despatch. Our production engineers inspect roller alignment, pickup timing, and net wrap cycle completion under load — so machines arrive ready to work from day one rather than requiring extensive dealer setup.

Beyond standard production, our engineering team offers a structured customisation service for customers with specific requirements. Common modifications requested by UK buyers include: alternative pickup widths where field layout demands it; reinforced pickup tine assemblies for use on stony ground; different net wrap speed settings to accommodate varying crop moisture levels; and custom colour schemes or branding for contractor fleets. If your operation has requirements that sit outside our standard range, we encourage you to submit a technical enquiry — our applications engineers can confirm feasibility within 48 hours.

Ready to Upgrade Your Baling Operation?

Talk to our team about the 9YQ-2300 Round Baler — specifications, pricing, customisation, and delivery to the UK.
